**Enhanced Title: The 900-Type Roll Forming Machine – A Precision Tool for Efficient Tile Production**

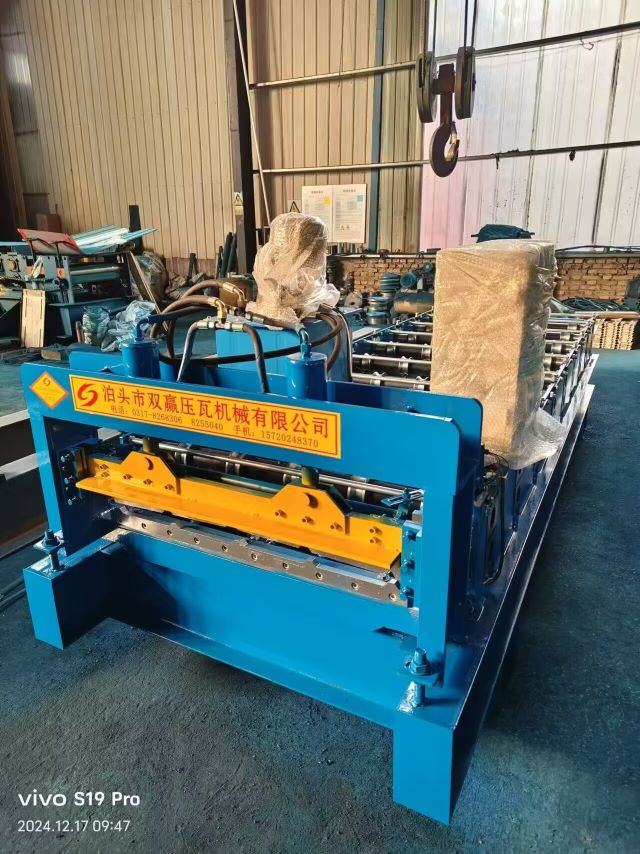

**Detailed Introduction of the 900-Type Roll Forming Machine**
The 900-Type Roll Forming Machine stands as a testament to advanced engineering in the construction industry, designed to produce a wide array of roof tiles with exceptional strength and durability. This versatile equipment boasts a robust 300mm H-shaped steel frame, guaranteeing stability and sustained high performance even under extended use. Below, we delve into the comprehensive performance parameters and distinctive features that make this machine a preferred choice.
**Machine Performance Parameters**
**Frame**:
– **300mm H-Shaped Steel Frame**: The backbone of this machine is crafted from premium 300mm H-shaped steel, offering substantial load-bearing capacity and unwavering stability. This design ensures seamless, high-load operations without any deformation or vibration over time.
**Roller Shaft Diameter**:
– **70mm Roller Shaft Diameter**: The roller shafts measure 70mm in diameter, capable of supporting heavy loads and maintaining uniformity in the forming process. This size is ample for enduring long-term, intense production cycles.
**Number of Forming Rows**:
– **9 Forming Rows**: The machine is equipped with nine forming rows, allowing simultaneous processing, which drastically enhances production speed and guarantees consistent tile quality.
**Roller Material**:
– **45# Steel Quenching Process**: Each roller is constructed from 45# steel and undergoes a quenching process, imparting high hardness and wear resistance. This extends the machine’s lifespan significantly.
**Motor Drive**:
– **3kW Motor**: Powering the machine is a 3kW motor, renowned for its stability and energy efficiency. This motor operates reliably for extended durations without compromising performance.
**Chain Drive**:
– **1-Inch Chain**: A high-strength 1-inch chain facilitates stable transmission, minimizing wear during continuous operation and further prolonging the machine’s service life.
**Hydraulic System**:
– **3kW Oil Pump for Hydraulic Power**: The machine incorporates a 3kW oil pump providing robust hydraulic power, ensuring efficient and precise cutting and adjustment operations.
**PLC Automation Control**:
– **PLC Automation Control System**: An advanced PLC system automates the adjustment of operating parameters, minimizing manual intervention and elevating production efficiency and accuracy. The user-friendly interface simplifies operation.
**Working Principle**
**Feeding**:
Raw materials, typically color-coated or galvanized steel coils, are fed into the machine via a feeding platform. The machine adapts automatically to the desired tile size, pressing the steel sheets to the specified thickness and width.
**Forming Process**:
The steel sheets traverse a series of forming rolls, gradually shaping into the desired tile form under continuous roller pressure. Each roller is powered by a robust motor, transmitting force through chains to ensure precise shaping.
**Cutting**:
Upon reaching the desired length, the hydraulic system activates the cutting mechanism. The oil pump-powered hydraulic cutting system ensures precise cuts and swift operation.
**Discharge**:
Post-cutting, the finished tiles are automatically conveyed to the receiving platform, marking the end of the production cycle.
**Main Features and Advantages**
**High Efficiency**:
With nine forming rows, the machine produces high-quality tiles in minimal time, significantly boosting productivity.
**High Precision**:
The PLC system ensures precision during forming and cutting, yielding uniform tiles.
**Stability**:
The 300mm H-shaped frame and 70mm roller shafts ensure robust stability and longevity, withstanding heavy workloads over extended periods.
**Low Maintenance Cost**:
The淬硬的45# steel rollers and durable chain drive reduce wear, lowering maintenance and replacement expenses.
**Easy Operation**:
The PLC system simplifies parameter setting, minimizing manual input and enhancing efficiency.
**Energy Efficiency**:
The 3kW motor and hydraulic system operate efficiently while keeping energy consumption low, aiding in cost reduction.
**Application Areas**
The 900-Type Roll Forming Machine excels in producing roofing and wall panels, ideal for:
– **Construction Industry**: Producing roof tiles, wall panels, exterior cladding, and other construction materials.
– **Factories and Warehouses**: Suitable for quick-installation steel-structure buildings.
– **Agricultural Greenhouses**: Roof and wall coverings for agricultural structures.
– **Other Industries**: Including workshops, commercial buildings, and more.
**Contact Information**
For detailed inquiries or pricing on the 900-Type Roll Forming Machine, please contact:
– **WhatsApp**: +8613832784260
– **Email**: zhaohuabb@163.com
– **Company**: China Botou Win-Win Roll Forming Machine Co., Ltd.
We are dedicated to offering high-quality, reliable roll forming machines that enhance production efficiency and minimize operational costs.
